Highly Integrated and Compact Water Treatment Equipment for Wastewater with Shallow Air Flotation Technology

Highly Integrated and Compact Water Treatment Equipment for Wastewater with Shallow Air Flotation Technology

 The Shallow Air Flotation (SAF) System revolutionizes industrial and municipal wastewater treatment with its highly integrated design and cutting-edge "shallow theory" technology, delivering unmatched efficiency in contaminant removal. Designed for industries like machinery manufacturing, paper mills, electroplating, and oil refining, this compact system achieves 98%+ suspended solids (SS) removal in just 3–5 minutes – all while occupying 70% less space and costing <¥0.1 per ton to operate.

Core Advantages

✅ Ultra-Compact & Efficient:

• Effective Depth: 730mm – Utilizes "shallow pool theory" for minimal footprint.

• Surface Load: 5–10x higher than traditional systems, ideal for space-constrained facilities.

✅ Zero Clogging, Zero Downtime:

• 5–10μm Microbubbles + non-clogging release mechanism ensure stable air flotation even with oily or fibrous wastewater.

• Microsand Recycling ≥99.5% – Eliminates secondary pollution, outperforming magnetic coagulation processes.

✅ Smart Automation & Low Cost:

• Integrated IoT controls enable real-time monitoring of turbidity, flow, and sludge levels.

• 30% lower energy consumption vs. DAF systems – no complex compressors or pumps.

✅ Rapid, Reliable Results:

• SS Removal >98%, Oil Separation >95% – Effluent turbidity <5 NTU.

• Withstands shock loads (COD 500–10,000 mg/L) without performance loss.

Industry Applications

• Machinery Manufacturing: Coolant/oil emulsion separation, heavy metal removal.

• Paper Mills: White water recovery, fiber/clay clarification.

• Electroplating: Chromium/nickel ion removal, rinse water reuse.

• Oil Refining: Oily wastewater treatment, API separator polish.

• Municipal: Black-odor river remediation, sludge thickening.

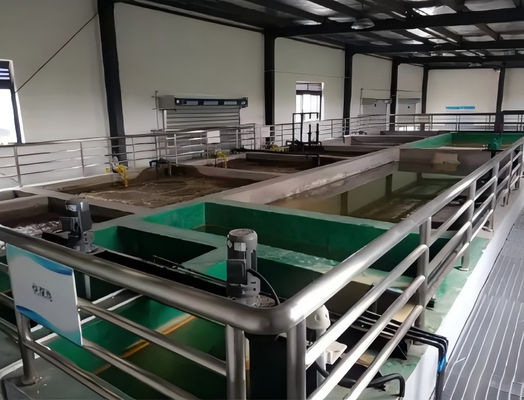

Project Case

Machinning Industry Wastewater Treatment Solution The treatment of wastewater in the machinery industry should first consider the collection of "quality classification", and then carry out targeted physical and chemical pretreatment separately. If the organic matter emission requirements are high, the secondary biochemical treatment process or strong oxidation treatment process is adopted, and the reaction by-products of the strong oxidation process are more, which is easy to cause secondary pollution, so the biochemical process is preferred, and its advantage is that the operation intensity is small and there is no secondary pollution. Since the biochemical properties of wastewater in the machinery industry are mostly poor, the introduction of domestic sewage or external nutrients should be considered when using biological treatment.



Certificate

API-5LD AUTHENTICATION	American Petroleum Institute API 5LC Certificate	ASME Certificate in the United States	EU PED&AD2000 certificate	ABS classification society certification certificate in the United States	DNV Det Norske Veritas Certificate	RINA Italian Bureau of Shipping Certificate	BV French Bureau of Shipping certification	LR Lloyd's Register Certificate of Approval	Customs Union EAC Certificate	Russian GOST certificate

Why Choose Our SAF System?

• Global Compliance: CE, ISO 9001/14001 certified, meets EU/China EPA standards.
•  Plug-and-Play Modularity: Pre-assembled skids for <1-week installation.
• Sustainability: 100% recyclable microsand, zero chemical sludge pollution.

Upgrade Your Wastewater Treatment – Achieve Compliance, Save Costs, and Reclaim Space!
